 METAL REFINING KONVERTER

Reduce Your Scrap Metal Cost



 Identified as one of the key metallurgical tools, Metal Refining Konverters (MRK) provide a necessary option to technocrats exploring advanced systems for economical refining. MRK is an improved Air-Oxygen-Decarburisation (AOD) converter for making Stainless Steel and Alloy Steels. It uses air & nitrogen to reduce operating costs. Our Konverter uses a Microprocessor based Gas flow control system which increases the level of purity of the metal, while maintaining consistency of process & simultaneously reducing the gas & ferro alloy consumption.



  • Process is highly predictable & reproduceable as mixing Station is Micro Processor based with computer Station, which promotes fast de-carburisation & reduction
  • High recovery of alloying elements like Cr, Mn
  • Flow measurement compensated for pressure & temperature
  • Lower gases & non-metallic inclusions
  • Accurate flow measurement compensated for pressure and temperature variation reduces the use of Ferro Silicon and Oxygen
  • In case of power failure, UPS works as a back up power source
  • Overall process display and recording enables modification of process parameters during processing
  • Online printout of recorded data of gas flow/pressure helps in monitoring, comparing & costing away from the control room
  • Suitable for production of all grades of Stainless Steels.

Operator Control Panel for Metal Refining Konverter

Example Of Chemistry Controlled in Our Metal Refining Konverter

INPUT METAL CHEMISTRY

FINISHED METAL CHEMISTRY

C

=

2.5%

C

=

0.08%

Mn

=

4.0%

Mn

=

8.0%

Cr

=

12.05

Cr

=

14.5%

Ni

=

1.0%

Ni

=

1.0%

Si

=

0.8%

Si

=

0.5%

Cu

=

1.5%

Cu

=

1.5%

P

=

0.045%

P

=

0.045%

S

=

0.035%

S

=

0.025%

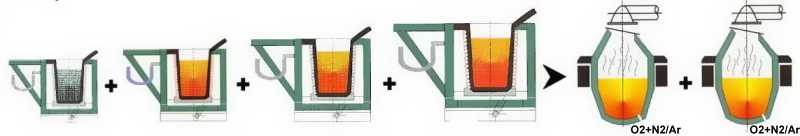

World's Largest Stainless Steel Manufacturing By Using Our Induction Melting Furnaces & Metal Refining Konverters.

5 MT

+

 10MT

+

   15MT

+

      20MT

>

  20MT

+

22MT

              Medium Frequency Induction Furnaces

Metal Refining Konverters
